Ecology and Environmental Sciences ›› 2026, Vol. 35 ›› Issue (2): 267-277.DOI: 10.16258/j.cnki.1674-5906.2026.02.010
• Environmental Science • Previous Articles Next Articles
FAN Mingyang1,2(
), GUO Chunbin2,3, ZOU Jingjing1,2,*(
), LUO Genhua1,4, LIU Yueci1, XU Ying1,2,*(
)
Received:2025-07-29
Revised:2026-01-13
Accepted:2026-01-26
Online:2026-02-18
Published:2026-02-09
Contact:
ZOU Jingjing,XU Ying
范铭洋1,2(
), 郭春彬2,3, 邹晶晶1,2,*(
), 罗根华1,4, 刘越雌1, 徐颖1,2,*(
)
通讯作者:
邹晶晶,徐颖
作者简介:范铭洋(2000年生),女(蒙古族),硕士研究生,研究方向为水环境污染治理研究。E-mail: 472321939@stu.lntu.edu.cn
基金资助:CLC Number:
FAN Mingyang, GUO Chunbin, ZOU Jingjing, LUO Genhua, LIU Yueci, XU Ying. Study on the Adsorption Performance and Mechanism of Modified Coal Gasification Slag for Sulfadiazine in Aquatic Environment[J]. Ecology and Environmental Sciences, 2026, 35(2): 267-277.
范铭洋, 郭春彬, 邹晶晶, 罗根华, 刘越雌, 徐颖. 改性煤气化渣对水中磺胺嘧啶吸附性能及机理研究[J]. 生态环境学报, 2026, 35(2): 267-277.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.jeesci.com/EN/10.16258/j.cnki.1674-5906.2026.02.010
| 组成 | SiO2 | Al2O3 | TiO2 | CaO | Fe2O3 | MgO | LOI |
|---|---|---|---|---|---|---|---|
| 质量分数/% | 42.5 | 21.4 | 2.2 | 6.2 | 11.4 | 3.9 | 12.4 |
Table 1 Chemical compositions of the coal gasification slag sample
| 组成 | SiO2 | Al2O3 | TiO2 | CaO | Fe2O3 | MgO | LOI |
|---|---|---|---|---|---|---|---|
| 质量分数/% | 42.5 | 21.4 | 2.2 | 6.2 | 11.4 | 3.9 | 12.4 |
| 质量浓度/ (mg∙L−1) | 准一级动力学模型 | 准二级动力学模型 | Elovich 模型 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| k1/min−1 | q1e/(mg∙g−1) | r12 | k2/(g∙mg−1∙min−1) | q2e/(mg∙g−1) | r22 | β/(g∙mg−1) | α/(mg∙g−1∙min−1) | re2 | |||
| 20 | 0.012 | 5.9 | 0.961 | 0.013 | 24.9 | 0.999 | 0.655 | 4.81×103 | 0.961 | ||

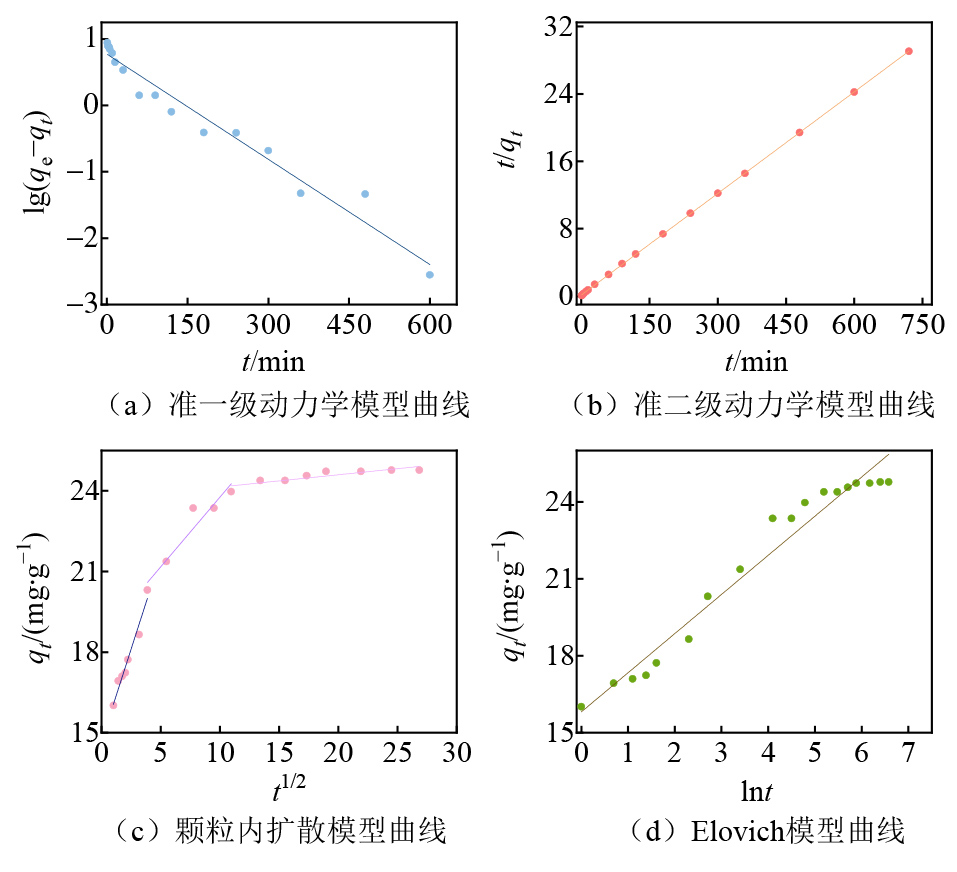

Table 2 Kinetics model fitting results of adsorbed SDZ
| 质量浓度/ (mg∙L−1) | 准一级动力学模型 | 准二级动力学模型 | Elovich 模型 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| k1/min−1 | q1e/(mg∙g−1) | r12 | k2/(g∙mg−1∙min−1) | q2e/(mg∙g−1) | r22 | β/(g∙mg−1) | α/(mg∙g−1∙min−1) | re2 | |||
| 20 | 0.012 | 5.9 | 0.961 | 0.013 | 24.9 | 0.999 | 0.655 | 4.81×103 | 0.961 | ||
| 质量浓度/ (mg∙L−1) | 颗粒内扩散模型 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| kd1/(mg∙g−1∙min−0.5) | w1/(mg∙g−1) | rd12 | kd2/(mg∙g−1∙min−0.5) | w2/(mg∙g−1) | rd22 | kd3/(mg∙g−1∙min−0.5) | w3/(mg∙g−1) | rd32 | |
| 20 | 1.372 | 14.688 | 0.962 | 0.518 | 18.582 | 0.895 | 0.046 | 23.684 | 0.758 |
Table 3 Intra-particle diffusion model fitting results of adsorbed SDZ
| 质量浓度/ (mg∙L−1) | 颗粒内扩散模型 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| kd1/(mg∙g−1∙min−0.5) | w1/(mg∙g−1) | rd12 | kd2/(mg∙g−1∙min−0.5) | w2/(mg∙g−1) | rd22 | kd3/(mg∙g−1∙min−0.5) | w3/(mg∙g−1) | rd32 | |
| 20 | 1.372 | 14.688 | 0.962 | 0.518 | 18.582 | 0.895 | 0.046 | 23.684 | 0.758 |
| [1] |
AFKHAMI A, MADRAKIAN T, KARIMI Z, 2007. The effect of acid treatment of carbon cloth on the adsorption of nitrite and nitrate ions[J]. Journal of Hazardous Materials, 144(1-2): 427-431.
PMID |
| [2] |
BIAŁK-BIELIŃSKA A, STOLTE S, MATZKE M, et al., 2012. Hydrolysis of sulphonamides in aqueous solutions[J]. Journal of Hazardous Materials, 221-222: 264-274.
DOI URL |
| [3] | CHEN M M, YAN Z, LUAN J D, et al., 2023. π-π electron-donor-acceptor (EDA) interaction enhancing adsorption of tetracycline on 3D PPY/CMC aerogels [J]. Chemical Engineering Journal, 454(Part 4): 140300. |
| [4] |
DU M J, HUANG J J, LIU Z Y, et al., 2018. Reaction characteristics and evolution of constituents and structure of a gasification slag during acid treatment[J]. Fuel, 224: 178-185.
DOI URL |
| [5] |
FUKAHORI S, FUJIWARA T, ITO R, et al., 2011. pH-dependent adsorption of sulfa drugs on high silica zeolite: Modeling and kinetic study[J]. Desalination, 275(1-3): 237-242.
DOI URL |
| [6] |
GUO C B, LIANG S, HAN X F, et al., 2025. Controllable-aspect ratio α-Al2O3 platelets and nano-silica via one-step synthesis from kaolin[J]. Ceramics International, 51(27 Part A): 52888-52899.
DOI URL |
| [7] |
GUO C B, LIU Y C, GUO J J, et al., 2026. Sustainable conversion of coal gasification fine slag into CaO-SiO2-H2O adsorbents for efficient removal and immobilization of Sr2+ in simulated seawater[J]. Journal of Environmental Chemical Engineering, 14(1): 120924-120924.
DOI URL |
| [8] |
HE X L, LI J L, MENG Q M, et al., 2021. Enhanced adsorption capacity of sulfadiazine on tea waste biochar from aqueous solutions by the two-step sintering method without corrosive activator[J]. Journal of Environmental Chemical Engineering, 9(1): 104898.
DOI URL |
| [9] |
HU X H, HUANG Y, PAN Z, et al., 2022. Preparation of carbonyl, hydroxyl, and amino-functionalized microporous carbonaceous nanospheres from syrup-based waste to remove sulfamethazine[J]. Environmental Science and Pollution Research, 29(19): 27688-27702.
DOI |
| [10] |
NI W J, YOU K Y, CHEN C, et al., 2023. Novel functional TiPO/SiO2 catalyst enriched surface hydroxyl groups for highly selective catalytic oxidation of cyclohexylamine to cyclohexanone oxime[J]. Applied Surface Science, 631: 157575.
DOI URL |
| [11] |
WANG B, MO Q Y, QIN B, et al., 2022. Adsorption behaviors of three antibiotics in single and co-existing aqueous solutions using mesoporous carbon[J]. Environmental Research, 215(Part 2): 114375.
DOI URL |
| [12] | WANG J Q, ZHANG L L, CAO T T, et al., 2024. Investigating the adsorption mechanism of zinc chloride-modified porous carbon for sulfadiazine removal from water[J]. Open Chemistry, 22(1): 1434-1438. |
| [13] | YAN J R, ZUO X X, YANG S J, et al., 2022. Evaluation of potassium ferrate activated biochar for the simultaneous adsorption of copper and sulfadiazine: Competitive versus synergistic[J]. Journal of Hazardous Materials, 424(Part B): 127435. |
| [14] |
YIN Q Q, REN H P, WANG R K, et al., 2018. Evaluation of nitrate and phosphate adsorption on Al-modified biochar: Influence of Al content[J]. Science of The Total Environment, 631-632: 895-903.
DOI URL |
| [15] |
YUAN N, ZHAO A J, HU Z K, et al., 2022. Preparation and application of porous materials from coal gasification slag for wastewater treatment: A review[J]. Chemosphere, 287(Part 2): 132227.
DOI URL |
| [16] |
ZHANG J Y, ZUO J, JIANG Y S, et al., 2020. Kinetic analysis on the mesoporous formation of coal gasification slag by acid leaching and its thermal stability[J]. Solid State Sciences, 100: 106084.
DOI URL |
| [17] |
ZHANG Y R, LI T J, LIN Y X, et al., 2025. Physiological effects of sulfadiazine and sulfamethoxazole on Skeletonema costatum and toxicological evaluation using IBRv2 index[J]. Ecotoxicology and Environmental Safety, 292: 117881.
DOI URL |
| [18] |
ZHU D D, ZUO J, JIANG Y S, et al., 2020. Carbon-silica mesoporous composite in situ prepared from coal gasification fine slag by acid leaching method and its application in nitrate removing[J]. Science of The Total Environment, 707: 136102.
DOI URL |
| [19] |
ZOU J J, SUN Y P, LIANG S, et al., 2025. Sustainable application of coal fly ash: Alumina recovery from coal fly ash by low-temperature roasting with potassium persulfate[J]. Advanced Powder Technology, 36(9): 104986.
DOI URL |
| [20] |
ZUO X T, QIAN C, MA S L, et al., 2020. Sulfonamide antibiotics sorption by high silica ZSM-5: Effect of pH and humic monomers (vanillin and caffeic acid)[J]. Chemosphere, 248: 126061.
DOI URL |
| [21] | 阿拉腾沙嘎, 段乐乐, 2025. 煤气化渣资源化利用的研究进展[J]. 化工技术与开发, 54(3): 44-47. |
| ALATENG S G, DUAN L L, 2025. Research progress on resource utilization of gasification ash[J]. Technology & Development of Chemical Industry, 54(3): 44-47. | |
| [22] | 白国敏, 孙寓姣, 孙钰洁, 等, 2025. 磺胺类抗生素的生物降解研究进展[J]. 环境工程, 43(7): 112-124. |
| BAI G M, SUN Y J, SUN Y J, et al., 2025. Research progress on biodegradation of sulfonamides[J]. Environmental Engineering, 43(7): 112-124. | |
| [23] | 蔡伟杰, 2021. 铁基磷化物及其碳球复合物催化降解有机污染物的研究[D]. 杭州: 浙江理工大学: 1-94. |
| CAI W J, 2021. Catalytic degradation of organic pollutants by iron phosphides and its carbon spheres complexes[D]. Hangzhou: Zhejiang Sci-Tech University: 1-94. | |
| [24] | 陈和生, 孙振亚, 邵景昌, 2011. 八种不同来源二氧化硅的红外光谱特征研究[J]. 硅酸盐通报, 30(4): 934-937. |
| CHEN H S, SUN Z Y, SHAO J C, 2011. Investigation on FT-IR spectroscopy for eight different sources of SiO2[J]. Bulletin of the Chinese Ceramic Society, 30(4): 934-937. | |
| [25] | 陈进, 张海燕, 王晓刚, 等, 2013. 酸处理对碳纳米管电子自旋共振谱的研究[J]. 人工晶体学报, 42(1): 177-180, 185. |
| CHEN J, ZHANG H Y, WANG X G, et al., 2013. Electron spin resonance study on acid treatment of carbon nanotube[J]. Journal of Synthetic Crystals, 42(1): 177-180, 185. | |
| [26] | 邓林, 李璐, 韩爱钊, 等, 2025. 硫掺杂碳纳米纤维对水中磺胺嘧啶的吸附性能及机制[J]. 环境工程学报, 19(9): 2139-2149. |
| DENG L, LI L, HAN A Z, et al., 2025. Adsorption performance and mechanism of sulfur-doped carbon nanofibers for sulfadiazine in water[J]. Chinese Journal of Environmental Engineering, 19(9): 2139-2149. | |
| [27] | 窦占双, 魏力, 王梦梦, 等, 2024. 煤气化渣替代矿渣制备超硫酸盐水泥的可行性研究[J]. 硅酸盐通报, 43(8): 2952-2960. |
| DOU Z S, WEI L, WANG M M, et al., 2024. Feasibility study on using coal gasification slag as a substitute for blast furnace slag to prepare super sulphated cement[J]. Bulletin of the Chinese Ceramic Society, 43(8): 2952-2960. | |
| [28] | 耿新祥, 2021. 改性生物炭吸附水体中磺胺类抗生素[D]. 南京: 南京师范大学: 1-87. |
| GENG X X, 2021. Sulfonamide antibiotics adsorbed by modified biochar in water[D]. Nanjing: Nanjing Normal University: 1-87. | |
| [29] | 李正达, 2021. 氨水辅助活化Cu/SiO2低温混合键合工艺及机理研究[D]. 哈尔滨: 哈尔滨工业大学: 1-69. |
| LI Z D, 2021. Process and mechanism of Cu/SiO2 low-temperature hybrid bonding using ammonia assisted activation[D]. Harbin: Harbin Institute of Technology: 1-69. | |
| [30] | 刘宝勇, 李思雯, 宋永红, 等, 2023. 改性煤矸石对废水中Pb2+和Zn2+的吸附性能[J]. 辽宁工程技术大学学报(自然科学版), 42(4): 444-450. |
| LIU B Y, LI S W, SONG Y H, et al., 2023. Adsorption performance of modified coal gangue for Pb2+ and Zn2+ in wastewater[J]. Journal of Liaoning Technical University (Natural Science), 42(4): 444-450. | |
| [31] | 刘泓志, 2022. 介孔碳的结构调控及其对水中不同抗生素的选择性吸附机理研究[D]. 重庆: 重庆大学: 1-80. |
| LIU H Z, 2022. Structural regulation of mesoporous carbon and the study on selective adsorption mechanism of different antibiotics in aqueous solution[D]. Chongqing: Chongqing University: 1-80. | |
| [32] | 刘诗月, 彭向天, 马瑞瑞, 等, 2024. 基于过硫酸盐活化的高级氧化技术处理水中磺胺类药物研究进展[J]. 环境工程技术学报, 14(2): 642-650. |
| LIU S Y, PENG X T, MA R R, et al., 2024. Research progress of advanced oxidation technology based on persulfate activation for the treatment of sulfonamides in water[J]. Journal of Environmental Engineering, 14(2): 642-650. | |
| [33] | 孟想, 2024. 煤气化渣基炭-沸石复合功能材料的制备及其应用性能研究[D]. 太原: 山西大学: 1-70. |
| MENG X, 2024. Preparation and application performance study of coal gasification residue based carbon-zeolite composite functional material[D]. Taiyuan: Shanxi University: 1-70. | |
| [34] | 宋永红, 2024. 托贝莫来石的制备及其CO2吸附性能研究[D]. 阜新: 辽宁工程技术大学: 1-72. |
| SONG Y H, Study on preparation of tobermorite and its CO2 adsorption performance[D]. Fuxin: Liaoning Technical University: 1-72. | |
| [35] | 孙晨旭, 2024. 煤气化渣基吸附功能材料的制备与性能研究[D]. 济南: 齐鲁工业大学: 1-100. |
| SUN C X, 2024. Preparation and properties of coal gasification slag-based adsorption functional materials[D]. Ji’nan: Qilu University of Technology: 1-100. | |
| [36] | 吴玉花, 刘彩珠, 马玉龙, 等, 2025. 煤气化渣一步重构碳/P沸石及其吸附结晶紫机制[J]. 煤炭学报, 50(5): 2658-2670. |
| WU Y H, LIU C Z, MA Y L, et al., 2025. One step reconstruction of carbon/P zeolite from coal gasification slag and its adsorption mechanism for crystal violet[J]. Journal of China Coal Society, 50(5): 2658-2670. | |
| [37] |
徐颖, 姚鑫毅, 宋永红, 等, 2024. 煤气化渣改性工艺及吸附Cd2+性能[J]. 过程工程学报, 24(1): 47-57.
DOI |
| XU Y, YAO X Y, SONG Y H, et al., 2024. Coal gasification slag modification process and its adsorption performance for Cd2+[J]. The Chinese Journal of Process Engineering, 24(1): 47-57. | |
| [38] | 杨保国, 2023. 气化粗渣改性及净化水中磷酸盐的机理研究[D]. 武汉: 中国地质大学: 1-136. |
| YANG B G, 2023. Modification of gasification coarse slag and its mechanism of purifying phosphate in water[D]. Wuhan: China University of Geosciences: 1-136. | |
| [39] | 杨平, 彭诗琪, 侯瑜秋, 等, 2025. 厌氧颗粒污泥与活性污泥微生物燃料电池对磺胺嘧啶的去除性能比较[J]. 环境工程学报, 19(1): 103-114. |
| YANG P, PENG S Q, HOU Y Q, et al., 2025. Comparative performance of sulphadiazine removal between anaerobic granular sludge and activated sludge microbial fuel cell[J]. Chinese Journal of Environmental Engineering, 19(1): 103-114. |
