Spatio-temporal Evolution and Ecological Sensitivity Evaluation of Rocky Desertification in Typical Karst Mountainous Areas of Southeast Yunnan Province

doi:10.16258/j.cnki.1674-5906.2024.11.013

Ecology and Environment ›› 2024, Vol. 33 ›› Issue (11): 1792-1802.DOI: 10.16258/j.cnki.1674-5906.2024.11.013

• Research Article [Environmental Science] • Previous Articles Next Articles

Spatio-temporal Evolution and Ecological Sensitivity Evaluation of Rocky Desertification in Typical Karst Mountainous Areas of Southeast Yunnan Province

LI Zikang¹(), YIN Xiaojie¹^,^*(), LIU Yifei¹, TANG Jimin¹, WANG Yan²

1. College of Forestry, Southwest Forestry University, Kunming 650224, P. R. China
2. College of Soil and Water Conservation, Southwest Forestry University, Kunming 650224, P. R. China

Received:2024-06-14 Online:2024-11-18 Published:2024-12-06
Contact: YIN Xiaojie

滇东南典型喀斯特山区石漠化时空演变及生态敏感性评价

李子康¹(), 殷晓洁¹^,^*(), 刘一飞¹, 唐继敏¹, 王妍²

1.西南林业大学林学院，云南昆明 650224
2.西南林业大学水土保持学院，云南昆明 650224

通讯作者: 殷晓洁
作者简介:李子康（2000年生），男，硕士研究生，主要从事石漠化地区生态环境治理研究。E-mail: 2430577330@qq.com
基金资助:
云南省“兴滇英才支持计划”青年人才项目(XDYC-QNRC-2022-0251);云南省农业基础研究联合专项(2018FG001-065)

Abstract

Abstract:

As southeast Yunnan has the most severe ecological and environmental problems, rocky desertification restricts local sustainable development. Ecological sensitivity assessment is crucial for analyzing the stability of the regional ecological environment and establishing a foundation for the restoration and management of the ecological environment in typical rocky desertification areas. To explore the variation in ecological sensitivity in rocky desertification areas and obtain helpful information for preventing and controlling ecological environmental issues in karst areas, taking Xichou County as an example, the spatiotemporal evolution process of rocky desertification was analyzed between 2000 and 2020 based on the Google Earth Engine, integrating rocky desertification factors of water and soil erosion, and habitat quality. Subsequently, ecological sensitivity was evaluated by combining the analytic hierarchy process and entropy weight methods. The results showed that 1) from 2000 to 2020, the stony desertification situation in Xichou County exhibited a stable and good recovery trend. The area without stony desertification increased by 275 km², accounting for 18.3%, and the rocky desertification area decreased by 0.281%-7.49%. 2) In terms of spatial patterns, all levels of rocky desertification in Xichou County changed to no rocky desertification, especially in Runhe, Sanguang, Changqing, and other small basins, reflecting remarkable effects in rocky desertification control. 3) Combining the variations in rocky desertification is essential for modeling the ecological sensitivity assessment of karst areas. The ecological sensitivity of Xichou County is higher for the following reasons: (a) the vegetation cover is low with steep slopes in the rocky desertification area. (b) Approximately 1/4 of the land use is farmland, and ecological sensitivity is high. (c) Rainfall erosion and soil erodibility factors were relatively high, and the soil texture was easily eroded, resulting in soil erosion. (d) The closer to the road, the higher the buffer zone level and ecological sensitivity. 4) The average comprehensive sensitivity index decreased from 4.67 (moderate sensitivity) to 3.26 (mild sensitivity) in Xichou County from 2000 to 2020, especially in Lianhuatang Township, Berin Township, and the southern part of Xingjie Township. This study proposes a novel evaluation of ecological sensitivity in karst areas considering the actual ecological environment and the variation in rocky desertification, which can provide a theoretical basis for further restoration and ecological environment protection in Xichou County and southeast Yunnan and is also highly applicable to other karst development areas.

Key words: rocky desertification, karst, GEE, ecological sensitivity, combination weighting method, comprehensive sensitivity index

摘要：

石漠化作为滇东南地区最为严重的生态环境问题，制约当地可持续发展。生态敏感性评价是分析区域生态环境稳定性的主要方法之一，可为典型石漠化地区生态环境修复和治理提供依据。为探究石漠化地区生态敏感性变化情况，获取预防和治理岩溶区生态环境问题的有益信息，以西畴县为例，基于Google Earth Engine平台分析2000－2020年西畴县石漠化时空演变过程，结合石漠化、水土流失及生境质量因子，通过层次分析法和熵权法的组合赋权法评估研究区生态敏感性。结果表明，1）2000－2020年，西畴县石漠化状况整体呈稳中向好的恢复趋势，无石漠化面积增加275 km²，占比增加18.3％，各等级石漠化面积下降0.281%－7.49%。2）空间上，西畴县各等级石漠化均向无石漠化转变，其中磨合、三光、长箐等小流域最为明显，反映出部分地区石漠化治理取得显著成效。3）结合石漠化变化对岩溶区生态敏感性评价模型的构建具有重要作用。西畴县生态敏感性较高，原因有：①石漠化严重地区，植被覆盖度低，坡度大；②土地利用类型约1/4为耕地，生态敏感性较高。③降雨侵蚀力和土壤可蚀性因子较高，土壤质地易被侵蚀，造成水土流失；④越靠近道路，缓冲区等级越高，生态敏感性越高。4）西畴县2000－2020年综合生态敏感性下降，平均综合敏感性指数由4.67（中度敏感）下降至3.26（轻度敏感），尤其以莲花塘乡、柏林乡及兴街镇南部生态敏感性下降明显。

关键词: 石漠化, 喀斯特, GEE, 生态敏感性, 组合赋权法, 综合敏感性指数

CLC Number:

LI Zikang, YIN Xiaojie, LIU Yifei, TANG Jimin, WANG Yan. Spatio-temporal Evolution and Ecological Sensitivity Evaluation of Rocky Desertification in Typical Karst Mountainous Areas of Southeast Yunnan Province[J]. Ecology and Environment, 2024, 33(11): 1792-1802.

李子康, 殷晓洁, 刘一飞, 唐继敏, 王妍. 滇东南典型喀斯特山区石漠化时空演变及生态敏感性评价[J]. 生态环境学报, 2024, 33(11): 1792-1802.

Figures/Tables 13

Table 1 Classification criteria of rocky desertification

石漠化等级	植被覆盖度/%	基岩裸露率/%	坡度/(°)
无石漠化	>80	<10	<5
潜在石漠化	60-80	10-30	5-8
轻度石漠化	40-60	30-50	8-10
中度石漠化	20-40	50-70	10-20
重度石漠化	10-20	70-90	20-30
极重度石漠化	<10	>90	>30

Table 2 Ecological sensitivity evaluation index system

敏感性等级	石漠化	水土流失					生境质量
敏感性等级	石漠化等级	高程/ m	坡度/ (°)	植被覆盖度	降雨侵蚀力/ (MJ·mm·hm^-2·h^-1·a^-1)	土壤可蚀性/ (t·h·MJ^-1·mm^-1)	土地利用 (董晓媛等, 2024)	距道路距离/ m
非敏感	无、潜在石漠化	674-1080	0-13	>0.8	<473	<0.026	水域	>2000
轻度敏感	轻度石漠化	1080-1248	13-22	0.7-0.8	473-503	0.026-0.030	林地	1000-2000
中度敏感	中度石漠化	1248-1389	22-31	0.6-0.7	503-533	0.030-0.033	草地	500-1000
重度敏感	重度石漠化	1389-1521	31-41	0.4-0.6	533-573	0.033-0.034	耕地	200-500
极重度敏感	极重度石漠化	1521-1931	41-76	<0.4	>573	>0.034	建设用地、未利用地	<200

Table 3 Weights of evaluation indicators

权重类别	石漠化等级	高程	坡度	植被覆盖度	降雨侵蚀力	土壤可蚀性	土地利用	据道路距离
w_aj	0.207	0.081	0.064	0.220	0.098	0.111	0.166	0.053
w_bj	0.264	0.030	0.060	0.318	0.044	0.081	0.106	0.097
$W i$	0.231	0.060	0.062	0.261	0.076	0.098	0.141	0.071

Table 3 Weights of evaluation indicators

权重类别	石漠化等级	高程	坡度	植被覆盖度	降雨侵蚀力	土壤可蚀性	土地利用	据道路距离
w_aj	0.207	0.081	0.064	0.220	0.098	0.111	0.166	0.053
w_bj	0.264	0.030	0.060	0.318	0.044	0.081	0.106	0.097
$W i$	0.231	0.060	0.062	0.261	0.076	0.098	0.141	0.071

Figure 1 Area proportion of graded rocky desertification in Xichou County from 2000 to 2020

Table 4 Area transfer matrix of rocky desertification in Xichou County from 2000 to 2020 km2

2000年	2020年						总计
2000年	无石漠化	潜在石漠化	轻度石漠化	中度石漠化	重度石漠化	极重度石漠化	总计
无石漠化	415.890	62.084	23.239	14.398	2.230	0.384	518.225
潜在石漠化	244.415	142.969	39.791	24.608	4.020	0.410	456.215
轻度石漠化	94.968	103.571	55.251	29.544	4.993	0.435	288.762
中度石漠化	31.868	62.640	42.597	43.662	4.827	0.400	185.993
重度石漠化	5.847	13.626	13.064	7.142	5.309	0.260	45.248
极重度石漠化	0.510	1.481	2.263	1.430	0.454	0.344	6.482
总计	793.499	386.371	176.205	120.784	21.833	2.233	1500.925

Figure 2 Distribution of rocky desertification levels in Xichou County from 2000 to 2020

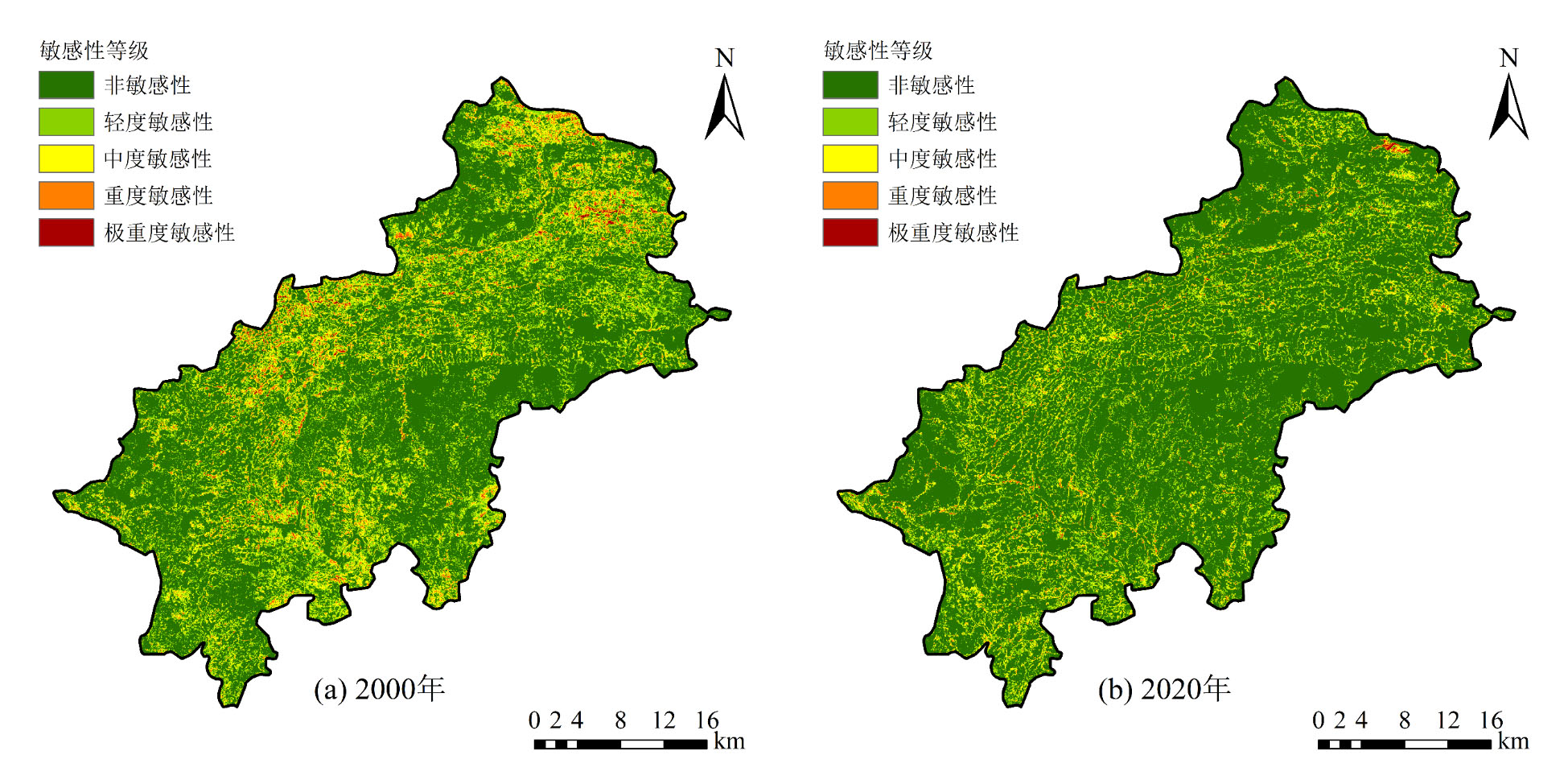

Figure 3 Distribution of sensitivity level of rocky desertification in Xichou County

Figure 4 Distribution of sensitivity level of vegetation coverage in Xichou County

Figure 5 Distribution of elevation and slope sensitivity in Xichou County

Figure 6 Distribution of rainfall erosivity sensitivity in Xichou County

Figure 7 Distribution of soil erodibility and sensitivity level of road buffer zone in Xichou County

Figure 8 Distribution of land use sensitivity in Xichou County

Figure 9 Distribution of comprehensive ecological sensitivity in Xichou County

References 27

[1]	ERMIDA S L, SOARES P, MANTAS V, et al., 2020. Google earth engine open-source code for land surface temperature estimation from the landsat series[J]. Remote Sensing, 12(9): 1471.
[2]	HUANG H B, CHEN Y L, CLINTON N, et al., 2017. Mapping major land cover dynamics in Beijing using all Landsat images in Google Earth Engine[J]. Remote Sensing of Environment, 202: 166-176.
[3]	LIAO W H, JIANG W G, 2020. Evaluation of the spatiotemporal variations in the eco-environmental quality in China based on the remote sensing ecological index[J]. Remote Sensing, 12(15): 2462.
[4]	WANG Y D, LI Z W, ZENG C, et al., 2020. An urban water extraction method combining deep learning and Google Earth engine[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 13: 769-782.
[5]	XIONG J, THENKABAIL P S, GUMMA M K, et al., 2017. Automated cropland mapping of continental Africa using Google Earth Engine cloud computing[J]. Isprs Journal of Photogrammetry & Remote Sensing, 126: 225-244.
[6]	YUAN D X, 1997. Rock desertification in the subtropical karst of south China[J]. Zeitschrift fur Geomorphologie, 108: 81-90.
[7]	陈棋, 张超, 田湘云, 等, 2022. 基于GEE的曲靖石漠化时空演变过程分析[J]. 西南林业大学学报(自然科学), 42(5): 1-10.
	CHEN Q, ZHANG C, TIAN X Y, et al., 2022. Spatial and temporal evolution of rocky desertification in Qujing based on GEE[J]. Journal of Southwest Forestry University (Natural Science), 42(5): 1-10.
[8]	崔斌凯, 2023. 基于熵值法和层次分析法的平凉市生态敏感性与恢复力分析[D]. 兰州: 兰州大学.
	CUI B K, 2023. Ecological sensitivity and resilience analysis of Pingliang City based on entropy method and analytic Hierarchy process[D]. Lanzhou: Lanzhou University.
[9]	段蓉, 李廷勇, 2022. 云南省石漠化现状及环境问题[J]. 资源节约与环保 (7): 36-40.
	DUAN R, LI T Y, 2022. Rocky desertification status and environmental problems in Yunnan Province[J]. Resource Conservation and Environmental Protection (7): 36-40.
[10]	董晓媛, 胥德泽, 施小斌, 等, 2024. 黄河流域甘肃段生态敏感性评价研究——以广河县为例[J]. 干旱区地理, 47(4): 599-611. DOI
	DONG X Y, XU D Z, SHI X B, et al., 2024. Ecological sensitivity assessment of the Gansu section of the Yellow River Basin: A case study of Guanghe County[J]. Arid Land Geography, 47(4): 599-611.
[11]	高家勇, 李瑞, 杨坪坪, 等, 2022. 贵州省土壤可蚀性K值空间分布特征及主要影响因子[J]. 水土保持研究, 29(5): 77-84.
	GAO J Y, LI R, YANG P P, et al., 2022. Spatial distribution characteristics and main influencing factors of soil erodibility K value in Guizhou Province[J]. Research on Soil and Water Conservation, 29(5): 77-84.
[12]	管青春, 郝晋珉, 王宏亮, 等, 2018. 经济转型视角下矿产资源城市生态敏感性评价[J]. 农业工程学报, 34(21): 253-262.
	GUAN Q C, HAO J M, WANG H L, et al., 2018. Ecological sensitivity evaluation of mineral resource cities from the perspective of economic transformation[J]. Transactions of the Chinese Society of Agricultural Engineering, 34(21): 253-262.
[13]	何苏玲, 邹凤琼, 王金亮, 2021. 基于AHP和MSE赋权法的龙南县生态敏感性评价[J]. 生态学杂志, 40(9): 2927-2935.
	HE S L, ZOU F Q, WANG J L, 2021. Ecological sensitivity assessment of Longnan County based on AHP and MSE weighting methods[J]. Chinese Journal of Ecology, 40(9): 2927-2935.
[14]	李阳兵, 白晓永, 邱兴春, 等, 2006. 喀斯特石漠化与土地利用相关性研究[J]. 资源科学, 28(2): 67-73.
	LI Y B, BAI X Y, QIU X C, et al., 2006. Study on the correlation between karst rocky desertification and land use[J]. Resource Science, 28(2): 67-73.
[15]	毛丽君, 李明诗, 2023. GEE环境下联合Sentinel主被动遥感数据的国家公园土地覆盖分类[J]. 武汉大学学报(信息科学版), 48(5): 756-764.
	MAO L J, LI M S, 2023. Land cover classification of national parks based on joint Sentinel active and passive remote sensing data in GEE environment[J]. Journal of Wuhan University (Information Science), 48(5): 756-764.
[16]	蒙雯洋, 饶良懿, 2024. 砒砂岩覆土区典型小流域土壤可蚀性K值空间变异特征[J]. 水土保持研究, 31(3): 10-19.
	MENG W Y, RAO L Y, 2024. Spatial variation characteristics of soil erodibility K value in a typical small watershed in Pasha sandstone soil cover area[J]. Research on Soil and Water Conservation, 31(3): 10-19.
[17]	欧阳志云, 王效科, 苗鸿, 2000. 中国生态环境敏感性及其区域差异规律研究[J]. 生态学报, 20(1): 9-12.
	OUYANG Z Y, WANG X K, MIAO H, 2000. Study on eco-environmental sensitivity and its regional differences in China[J]. Acta Ecologica Sinica, 20(1): 9-12.
[18]	宋沛林, 解吉波, 杨腾飞, 等, 2023. 基于生态敏感性的区域环境时空变化及其驱动因素探究——以定安县为例[J]. 测绘通报 (7): 18-24. DOI
	SONG P L, XIE J B, YANG T F, et al., 2023. Spatial and temporal change of regional environment and its driving factors based on ecological sensitivity: A case study of Ding’an County[J]. Bulletin of Surveying and Mapping (7): 18-24.
[19]	王世杰, 2002. 喀斯特石漠化概念演绎及其科学内涵的探讨[J]. 中国岩溶, 21(2): 31-35.
	WANG S J, 2002. Discussion on concept deduction and scientific connotation of karst rocky desertification[J]. Karst in China, 21(2): 31-35.
[20]	吴秀芹, 蔡运龙, 2006. 我国亚热带喀斯特生态环境演变研究进展[J]. 自然科学进展, 16(3): 267-272.
	WU X Q, CAI Y L, 2006. Research progress on ecological environment evolution of subtropical karst in China[J]. Progress in Natural Sciences, 16(3): 267-272.
[21]	魏柏浩, 阿里木江·卡斯木, 如克亚·热合曼, 等, 2023. 天山北坡城市群生态承载力演变与生态敏感性分析[J]. 生态学报, 43(4): 1399-1411.
	WEI B H, ALI M J, RU K Y, et al., 2023. Evolution of ecological carrying capacity and ecological sensitivity of urban agglomerations on the north slope of Tianshan Mountains[J]. Acta Ecologica Sinica, 43(4): 1399-1411.
[22]	徐红枫, 王妍, 苏倩, 等, 2022. 基于Google Earth Engine的云南省典型岩溶地区30年石漠化演变与驱动因子分析[J]. 干旱区资源与环境, 36(5): 94-101.
	XU H F, WANG Y, SU Q, et al., 2022. Evolution and driving factors of rock desertification in typical karst areas of Yunnan Province in the past 30 years based on Google Earth Engine[J]. Arid Zone Resources and Environment, 36(5): 94-101.
[23]	熊平生, 袁道先, 谢世友, 2010. 我国南方岩溶山区石漠化基本问题研究进展[J]. 中国岩溶, 29(4): 355-362.
	XIONG P S, YUAN D X, XIE S Y, 2010. Research progress on the basic problems of rocky desertification in karst mountain areas in southern China[J]. Karst in China, 29(4): 355-362.
[24]	杨艺苑, 杨存建, 2022. 基于GIS的东川区生态环境敏感性分析[J]. 测绘通报 (3): 7-12. DOI
	YANG Y Y, YANG C J, 2022. Ecological environment sensitivity analysis of Dongchuan District based on GIS[J]. Bulletin of Surveying and Mapping (3): 7-12.
[25]	张文峰, 2021. 西畴征服石漠再造绿洲[N]. 云南日报, 2021-10-15(004).
	ZHANG W F, 2021. Xichou conquered stone desert and rebuilt oasis[N]. Yunnan Daily, 2021-10-15(004).
[26]	周斯怡, 殷晓洁, 汤瑞权, 等, 2022. 长江上游典型石漠化地区生态环境质量评价[J]. 浙江农林大学学报, 39(4): 783-791.
	ZHOU S Y, YIN X J, TANG R Q, et al., 2022. Evaluation on ecological environment quality of typical rocky desertification areas in the upper reaches of Yangtze River[J]. Journal of Zhejiang A & F University, 39(4): 783-791.
[27]	邹丛荣, 2017. 沂蒙山区沂源县土壤可蚀性因子 (K) 研究[D]. 南京: 南京林业大学.
	ZOU C R, 2017. Study on soil erodibility factor (K) in Yiyuan County, Yimeng Mountain areap[D]. Nanjing: Nanjing Forestry University.
