硫和硅掺杂生物炭对镉污染土壤的修复研究

doi:10.16258/j.cnki.1674-5906.2023.10.014

生态环境学报 ›› 2023, Vol. 32 ›› Issue (10): 1854-1860.DOI: 10.16258/j.cnki.1674-5906.2023.10.014

硫和硅掺杂生物炭对镉污染土壤的修复研究

陈桂红()

广东省环境科学学会，广东广州 510000

收稿日期:2023-08-23 出版日期:2023-10-18 发布日期:2024-01-16
作者简介:陈桂红（1972年生），女，高级工程师，硕士，研究方向为土壤重金属污染治理。E-mail: 495656353@qq.com

Remediation of Cadmium Contaminated Soil by Sulfur/Silicon Doped Biochar

CHEN Guihong()

Guangdong Society of Environmental Sciences, Guangzhou 510000, P. R. China

Received:2023-08-23 Online:2023-10-18 Published:2024-01-16

摘要/Abstract

摘要：

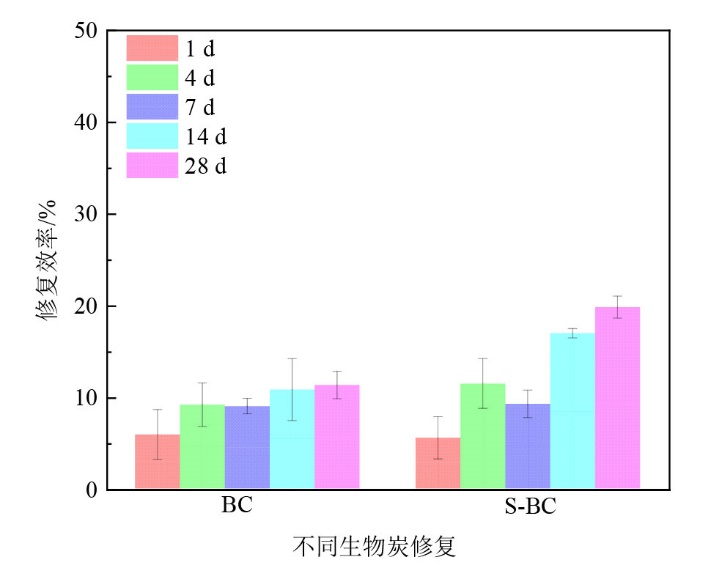

镉（Cd）污染已成为中国主要的土壤环境污染问题之一，是土壤污染治理领域的研究热点。生物炭因具有原材料丰富，提高土壤肥力等优势已被广泛用于土壤修复中，然而原始生物炭在Cd污染土壤修复中仍然存在局限性。通过对其修饰改性，进而提高生物炭的修复效果是拓展其在土壤修复领域应用的良方。分别利用Na₂S和Na₂O∙3SiO₂对生物炭进行改性，制备了S-BC（硫掺杂）和Si-BC（硅掺杂）改性生物炭修复材料，分析了改性前后生物炭的理化性质，并从修复时间、修复后土壤理化性质及镉不同形态变化等维度开展了土壤Cd污染修复研究。结果表明：非金属改性增加了生物炭的比表面积和官能团，且有利于减少其颗粒间的团聚，提高分散性及稳定性；Cd污染土壤的修复效率随修复时间和生物炭材料投加量的增加而增加，且BC、S-BC和Si-BC对镉的最大修复效率可达14.3%、27.9%和59.2%；Cd污染土壤经生物炭修复后，其土壤pH、CEC和有机质含量均提高，证实生物炭材料可改善土壤质量，提高土壤肥力，正向促进其对土壤中Cd的固定；3种生物炭材料均可降低土壤中可交换态Cd，且未修复、SBC修复和Si-BC修复的土壤中铁锰氧化物结合态、有机物结合态和残渣态占比和分别为50.3%、54.5%和64.8%，证明3种生物炭都可修复镉污染土壤，且相比S-BC，Si-BC更有利于促进可交换态和碳酸盐结合态镉向铁锰氧化物结合态和有机物结合态转变，进而降低Cd的可移动性及生物有效性，实现了Cd污染土壤高效修复目的。该研究提供了低成本、高效且安全的土壤修复材料，同时丰富了生物炭的改性及其对Cd污染土壤修复的应用研究。

关键词: 镉污染土壤, 改性生物炭, 土壤污染修复, 连续提取法, 作用机制

Abstract:

Cadmium (Cd) pollution is a significant soil environmental issue in China and has been a focus of research in the field of polluted soil remediation. Biochar has been widely used in soil remediation due to its large surface area, rich porosity, and availability of raw materials. However, the lack of selective adsorption sites and functionalization of biochar limit its effectiveness in remediating Cd-contaminated soil. Modification of biochar has been found to enhance soil remediation efficiency. In this study, S-BC and Si-BC were prepared by modifying biochar using Na₂S and Na₂O∙3SiO₂, respectively. The physicochemical properties of biochar before and after modification were analyzed. The remediation of Cd-contaminated soil by biochar was investigated in terms of remediation time, physicochemical properties of soil after remediation, and transformation of Cd speciation. Non-metallic modification of biochar increased its specific surface, functional groups, dispersibility, and stability. The remediation efficiency of Cd-contaminated soil increased with longer remediation time and higher material dosage, and the maximum remediation efficiency by BC, S-BC, and Si-BC could reach 14.3%, 27.9%, and 59.2%, respectively. The application of biochar increased soil pH, CEC, and organic matter content, promoting the fixation of Cd in the soil. BC, S-BC, and Si-BC reduced exchangeable Cd in the soil, whereas the proportions of iron manganese oxide bound Cd, organic matter bound Cd, and residual Cd in original soils, SBC remediated soils, and Si-BC remediated soils were 50.3%, 54.5%, and 64.8%, respectively. The results showed that biochar could be used in Cd-contaminated soil remediations. Compared with S-BC, Si-BC was more efficient in promoting the transition of exchangeable and carbonate-bound Cd to iron-manganese oxide-bound Cd and organic matter-bound Cd, further reducing the mobility and bioavailability of soil Cd. This study provides insights into the use of low-cost, high-efficient, and environment-friendly biochar for soil remediation. The results in this study can inform the investigations on biochar, and help expand the application of biochar in the remediation of Cd-contaminated soil.

Key words: cadmium pollution, modified biochar, polluted soil remediation, sequential extraction procedures, interaction mechanism

中图分类号:

陈桂红. 硫和硅掺杂生物炭对镉污染土壤的修复研究[J]. 生态环境学报, 2023, 32(10): 1854-1860.

CHEN Guihong. Remediation of Cadmium Contaminated Soil by Sulfur/Silicon Doped Biochar[J]. Ecology and Environment, 2023, 32(10): 1854-1860.

图/表 9

参考文献 23

[1]	CAI T, LIU X L, ZHANG J C, et al., 2021. Silicate-modified oiltea camellia shell-derived biochar: A novel and cost-effective sorbent for cadmium removal[J]. Journal of Cleaner Production, 281: 125390. DOI URL
[2]	EL-NAGGAR A, CHANG S X, CAI Y J, et al., 2021. Mechanistic insights into the (im) mobilization of arsenic, cadmium, lead, and zincin a multi-contaminated soil treated with different biochars[J]. Environment International, 156: 106638. DOI URL
[3]	ERDEM H, KINAY A, TUTUS Y, et al., 2017. Can biochar reduce cadmium uptake of tobacco?[J]. Fresenius Environmental Bulletin, 26(12): 7393-7399.
[4]	GAO R L, HU H Q, FU Q L, et al., 2020. Remediation of Pb, Cd, and Cu contaminated soil by co-pyrolysis biochar derived from rape straw and orthophosphate: Speciation transformation, risk evaluation and mechanism inquiry[J]. Science of The Total Environment, 730: 139119. DOI URL
[5]	HERATH I, ZHAO F J, BUNDSCHUH J, et al., 2020. Microbe mediated immobilization of arsenic in the rice rhizosphere after incorporation of silica impregnated biochar composites[J]. Journal of Hazardous Materials, 398: 123096. DOI URL
[6]	LIANG Y, CAO X D, ZHAO L, et al., 2014. Biochar- and phosphate-induced immobilization of heavy metals in contaminated soil and water: implication on simultaneous remediation of contaminated soil and groundwater[J]. Environmental Science and Pollution Research, 21(6): 4665-4674. DOI URL
[7]	LU K P, YANG X, GIELEN G, et al., 2016. Effect of bamboo and rice straw biochars on the mobility and redistribution of heavy metals (Cd, Cu, Pb and Zn) in contaminated soil[J]. Journal of Environmental Management, 186: 285-292. DOI URL
[8]	LU Y C, CHENG J Q, WANG J I, et al., 2022. Efficient remediation of cadmium contamination in soil by functionalized biochar: Recent advances, challenges, and future prospects[J]. Processes, 10(8): 1627. DOI URL
[9]	MORADI N, KARIMI A, 2021. Effect of modified corn residue biochar on chemical fractions and bioavailability of cadmium in contaminated soil[J]. Chemistry and Ecology, 37(3): 1-17. DOI URL
[10]	RANDOLPH P, BANSODE R R, HASSAN O A, et al., 2017. Effect of biochars produced from solid organic municipal waste on soil quality parameters[J]. Journal of Environmental Management, 192: 271-280. DOI PMID
[11]	REHMAN M Z U, RIZWAN M, ALI S, et al., 2018. Cadmium (Cd) concentration in wheat (Triticum aestivum) grown in Cd-spiked soil varies with the doses and biochar feedstock[J]. Arabian Journal of Geosciences, 11(21): 1-10. DOI URL
[12]	SEHAR A, AZIZ R, RAFIQ M T, et al., 2018. Synthesis of biochar from sugarcane filter-cake and its impacts on physiological performance of lettuce (Lettuce sativa) grown on cadmium contaminated soil[J]. Arabian Journal of Geosciences, 11(20): 1-8. DOI URL
[13]	SOHI S P, KRULL E, LOPEZ-CAPEL E, et al., 2010. A review of biochar and its use and function in soil[J]. Advances in Agronomy, 105: 47-82.
[14]	TAO L, HUANG M X, LI H, et al., 2022. Cadmium and arsenic interactions under different molar ratios during coadsorption processes by excluding pH interference[J]. Chemosphere, 291(Part 2): 132839. DOI URL
[15]	TESSIER A, CAMPBELL P G C, BISSON M, 1979. Sequential extraction procedure for the speciation of particulate trace metals[J]. Analytical Chemistry, 51(7): 844-851. DOI URL
[16]	UCHIMIYA M, 2014. Influence of pH, ionic strength, and multidentate ligand on the interaction of Cd(II) with biochars ACS Sustain[J]. ACS Sustainable Chemistry & Engineering, 2(8): 2019-2027.
[17]	WANG J B, YUAN R, ZHANG Y H, et al., 2022. Biochar decreases Cd mobility and rice (Oryza sativa L.) uptake by affecting soil iron and sulfur cycling[J]. Science of The Total Environment, 836: 155547. DOI URL
[18]	ZAHEDIFAR M, 2020. Effect of biochar on cadmium fractions in some polluted saline and sodic soils[J]. Environmental Management, 66(6): 1133-1141. DOI PMID
[19]	ZHANG K, CHEN Y, FANG Z Q, 2023. Highly efficient removal of cadmium by sulfur-modified biochar: Process and mechanism[J]. Water, Air, & Soil Pollution, 234(1): 1-11.
[20]	ZHANG X W, YAN Y, WADOOD S A, et al., 2020. Source apportionment of cadmium pollution in agricultural soil based on cadmium isotope ratio analysis[J]. Applied Geochemistry, 123: 104776. DOI URL
[21]	吕鹏, 李莲芳, 黄晓雅, 2023. 改性生物炭修复砷镉复合污染土壤研究进展[J]. 环境科学, 44(7): 4077-4090.
	LÜ P, LI L F, HUANG X Y, 2023. Modified biochar for remediation of soil contaminated with arsenic and cadmium: A review[J]. Environmental Science, 44(7): 4077-4090.
[22]	任超, 任彧仲, 王浩, 等, 2022. 镉胁迫下不同小麦品种对镉的积累特性[J]. 环境科学, 43(3): 1606-1619.
	REN C, REN Y Z, WANG H, et al., 2022. Cadmium accumulation characteristics of different heat varieties under cadmium stress[J]. Environmental Science, 43(3): 1606-1619.
[23]	苏子贤, 刘赛红, 管玉峰, 等, 2023. 镉砷在针铁矿界面共吸附的相互作用机制[J]. 环境科学, 44(7): 3970-3977.
	SU Z X, LIU S H, GUAN Y F, et al., 2023. Cadmium and arsenic interactions during co-adsorbed onto goethite[J]. Environmental Science, 44(7): 3970-3977.

步骤	形态	具体操作
I	可交换态 (EX)	取风干后1.00 g土壤样品加入到50 mL离心管中, 加入8 mL 1 mol∙L⁻¹醋酸钠 (pH=8.2), 室温下持续振荡反应1 h, 离心4 min (2700 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL容量瓶定容
II	碳酸盐结合态 (CB)	经上步处理后的残余物在室温下用8 mL 1mol∙L⁻¹乙酸钠提取, 提取前用醋酸把pH调至5.0, 振荡8 h (200 r∙min⁻¹), 离心10 min (4000 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL的容量瓶定容
III	铁锰氧化物结合态 (OX)	在经上步处理后的残余物中加入20 mL 0.04 mol∙L⁻¹盐酸羟胺的25% (V/V) 的醋酸溶液提取, 温度为 (96±3) ℃, 时间为4 h, 离心4 min (2700 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL的容量瓶定容
IV	有机物结合态 (OM)	向上步处理的残余物中, 加入3 mL 0.02 mol∙L⁻¹硝酸(HNO₃)和5 mL 30% (V/V) 过氧化氢(H₂O₂), 然后用硝酸(HNO₃)调节pH至2, 将混合物加热至 (85±2) ℃, 保温2 h, 并在加热中间振荡几次。再加入5 mL过氧化氢(H₂O₂), 调pH至2, 再将混合物加热至 (85±2) ℃, 保温3 h, 并间断振荡。冷却后, 加入5 mL 3.2 mol∙L⁻¹醋酸铵, 用20% (V/V) 硝酸溶液稀释到20 mL, 振荡30 min。离心4 min (2700 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL的容量瓶定容
V	残渣态 (RS)	对上步骤处理后的残余物, 利用硝酸-氢氟酸-高氯酸消解法消解分析。用10%的硝酸将离心管中的残余物洗到坩埚中, 加热消煮, 直至溶液剩余3 mL左右, 依次加入HNO₃ 15 mL、HF 10 mL、HClO₄ 5 mL, 并轻轻摇动, 继续加热蒸至白烟冒尽, 最终使土壤样品变成白色或淡黄色的胶块状 (若消解不完全则, 加入5 mL HF继续消解至完全)。用0.5%的稀硝酸冲洗坩埚内壁, 温热溶解, 冷却后转移定容

步骤	形态	具体操作
I	可交换态 (EX)	取风干后1.00 g土壤样品加入到50 mL离心管中, 加入8 mL 1 mol∙L⁻¹醋酸钠 (pH=8.2), 室温下持续振荡反应1 h, 离心4 min (2700 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL容量瓶定容
II	碳酸盐结合态 (CB)	经上步处理后的残余物在室温下用8 mL 1mol∙L⁻¹乙酸钠提取, 提取前用醋酸把pH调至5.0, 振荡8 h (200 r∙min⁻¹), 离心10 min (4000 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL的容量瓶定容
III	铁锰氧化物结合态 (OX)	在经上步处理后的残余物中加入20 mL 0.04 mol∙L⁻¹盐酸羟胺的25% (V/V) 的醋酸溶液提取, 温度为 (96±3) ℃, 时间为4 h, 离心4 min (2700 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL的容量瓶定容
IV	有机物结合态 (OM)	向上步处理的残余物中, 加入3 mL 0.02 mol∙L⁻¹硝酸(HNO₃)和5 mL 30% (V/V) 过氧化氢(H₂O₂), 然后用硝酸(HNO₃)调节pH至2, 将混合物加热至 (85±2) ℃, 保温2 h, 并在加热中间振荡几次。再加入5 mL过氧化氢(H₂O₂), 调pH至2, 再将混合物加热至 (85±2) ℃, 保温3 h, 并间断振荡。冷却后, 加入5 mL 3.2 mol∙L⁻¹醋酸铵, 用20% (V/V) 硝酸溶液稀释到20 mL, 振荡30 min。离心4 min (2700 r∙min⁻¹), 移出上清液, 将移出的溶液过滤, 用50 mL的容量瓶定容
V	残渣态 (RS)	对上步骤处理后的残余物, 利用硝酸-氢氟酸-高氯酸消解法消解分析。用10%的硝酸将离心管中的残余物洗到坩埚中, 加热消煮, 直至溶液剩余3 mL左右, 依次加入HNO₃ 15 mL、HF 10 mL、HClO₄ 5 mL, 并轻轻摇动, 继续加热蒸至白烟冒尽, 最终使土壤样品变成白色或淡黄色的胶块状 (若消解不完全则, 加入5 mL HF继续消解至完全)。用0.5%的稀硝酸冲洗坩埚内壁, 温热溶解, 冷却后转移定容

Parameter	BC	S-BC	Si-BC
C/%	77.1	33.0	28.8
H/%	2.95	1.76	1.50
O/%	12.8	34.8	16.3
S/%	0.097	1.61	0.110
H/C	0.459	0.642	0.625
O/C	0.124	0.790	0.425
A_s/(m²∙g⁻¹)	12.3	46.0	59.3
V_m/(cm³∙g⁻¹)	2.82	10.6	13.6
V_t/(cm³∙g⁻¹)	0.030	0.026	0.057
D/nm	9.86	2.32	3.82

Parameter	BC	S-BC	Si-BC
C/%	77.1	33.0	28.8
H/%	2.95	1.76	1.50
O/%	12.8	34.8	16.3
S/%	0.097	1.61	0.110
H/C	0.459	0.642	0.625
O/C	0.124	0.790	0.425
A_s/(m²∙g⁻¹)	12.3	46.0	59.3
V_m/(cm³∙g⁻¹)	2.82	10.6	13.6
V_t/(cm³∙g⁻¹)	0.030	0.026	0.057
D/nm	9.86	2.32	3.82
